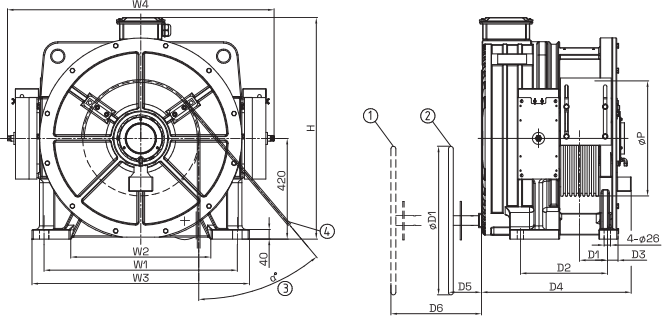

1000kg-3500kg WJC-2500/3500 SERIES MACHINES

Notes：

1. Customers need to confirm on the angel range of this series traction machine with our engineers.

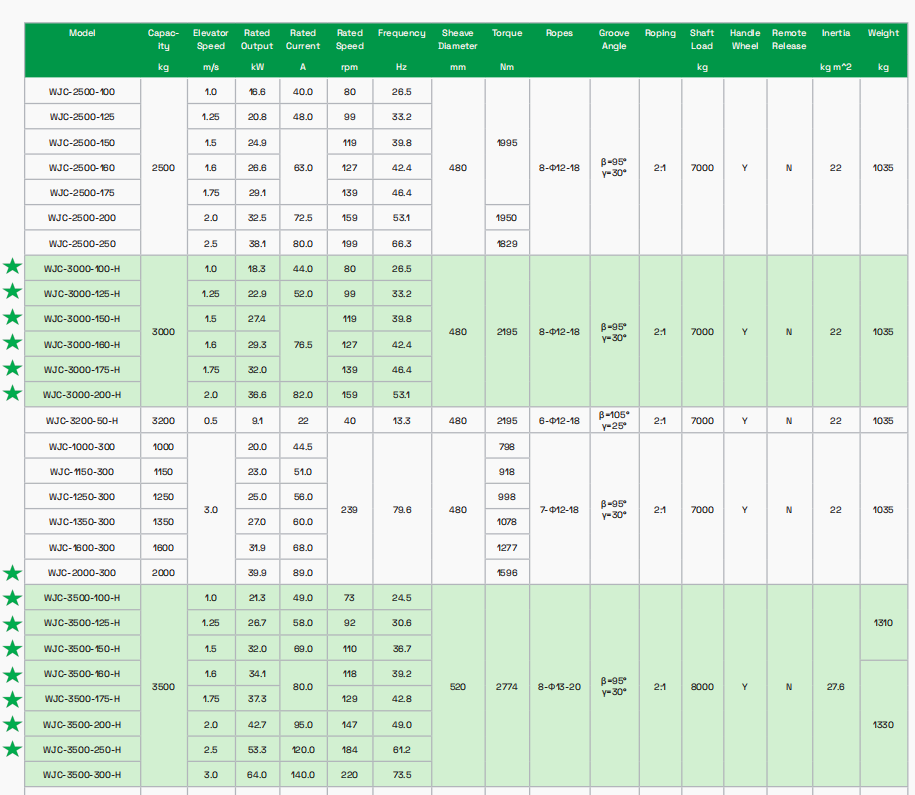

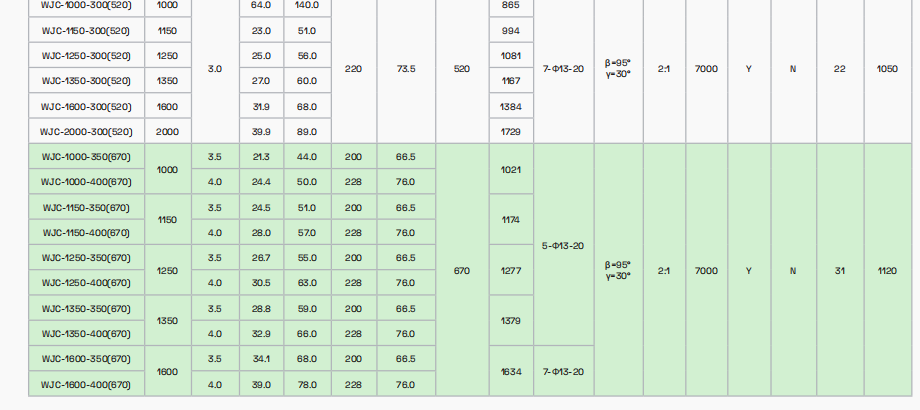

2. The balance ratio for WJC-2500-200~250, WJC-3000-H, WJC-1000~1600-350~400 are 0.45~0.5.

3. The brake picking/holding voltage is DC110V. Voltage switch is not necessary.

4. With “★ ” mark, the duty cycle is  S5-30%.

5.  Regen drive application, please consult with us, then order with notes
