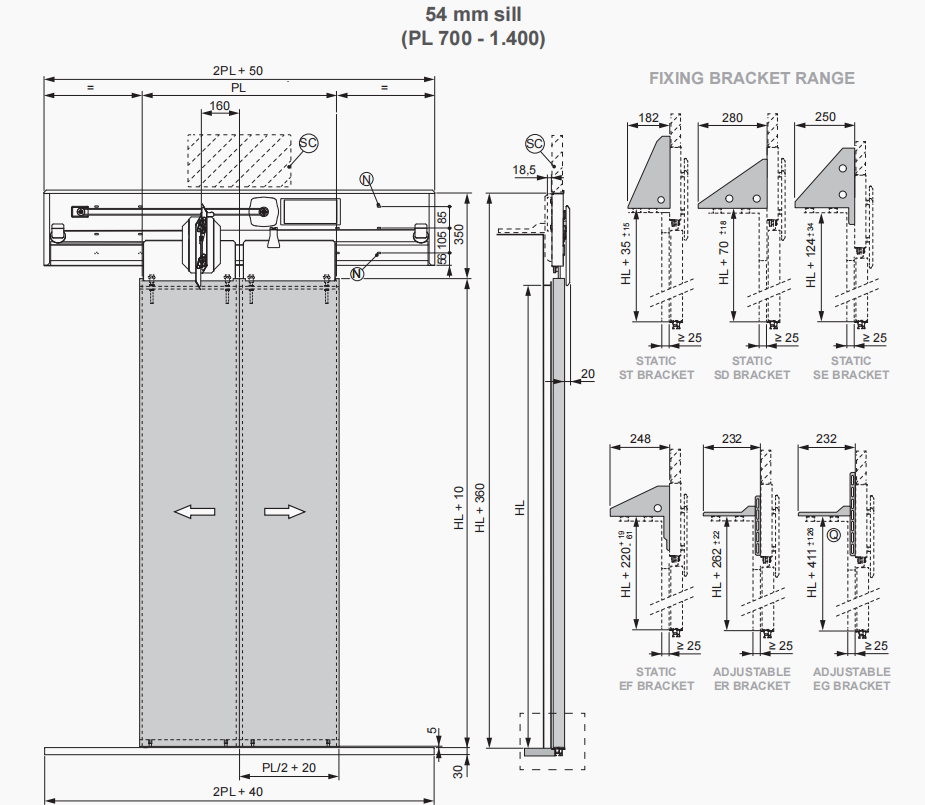

2 panel centre parting car door 54 mm sill (PL 700 – 1.400)

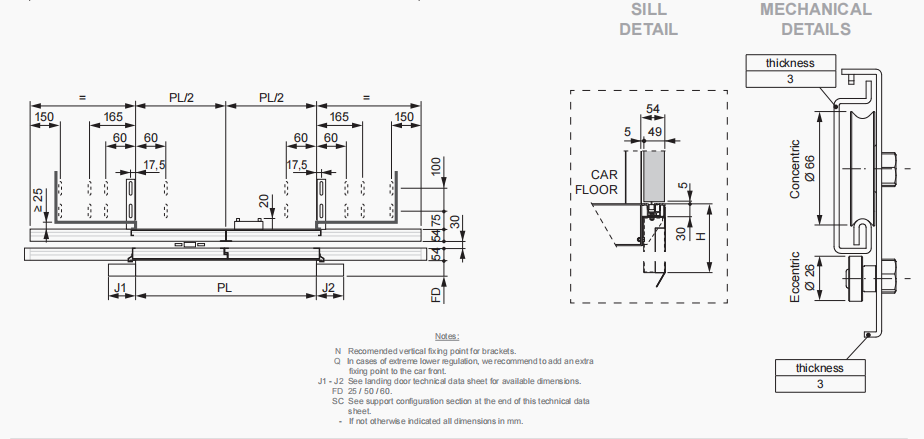

Notes:

N   Recomended vertical fixing point for brackets.

Q   In cases of extreme lower regulation, we recommend to add an extra fixing point to the car front.

J1 - J2  See landing door technical data sheet for available dimensions.

FD  25 / 50 / 60.

SC  See support configuration section at the end of this technical data sheet.

-   If not otherwise indicated all dimensions in mm.
