2 panel side opening car door 90 mm sill

Short Description:

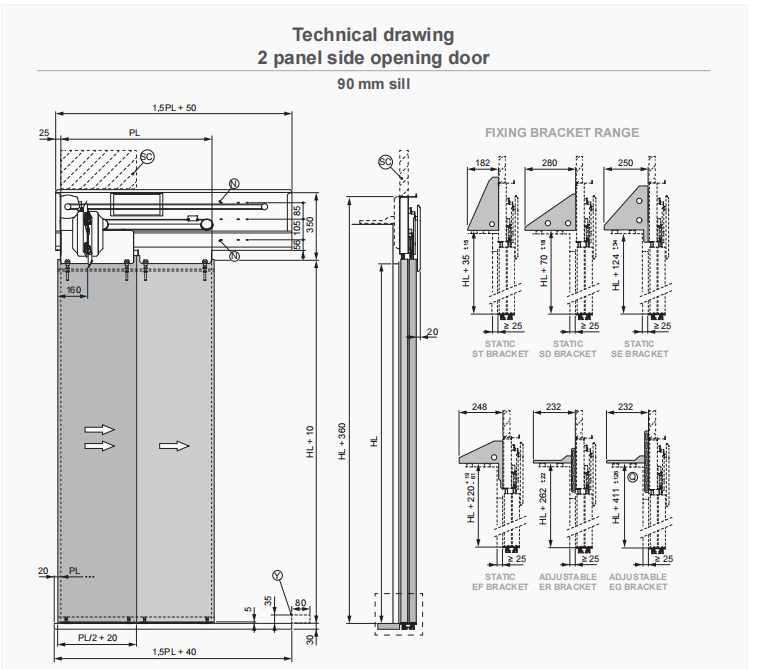

Technical drawing

2 panel side opening car door

90 mm sill




Product Detail

Product Tags

b c

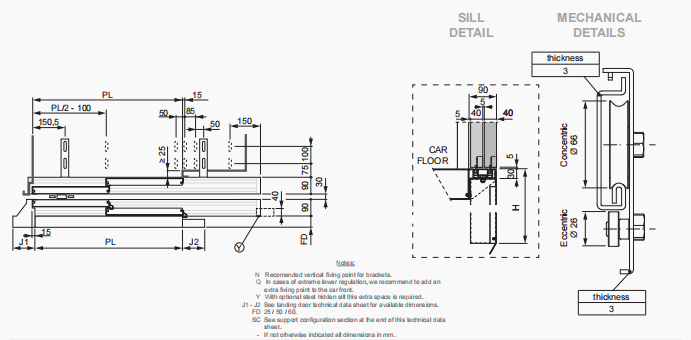

Notes:

N   Recomended vertical fixing point for brackets.

Q   In cases of extreme lower regulation, we recommend to add an extra fixing point to the car front.

J1 - J2  See landing door technical data sheet for available dimensions.

FD  25 / 50 / 60.

SC  See support configuration section at the end of this technical data sheet.

-   If not otherwise indicated all dimensions in mm.
