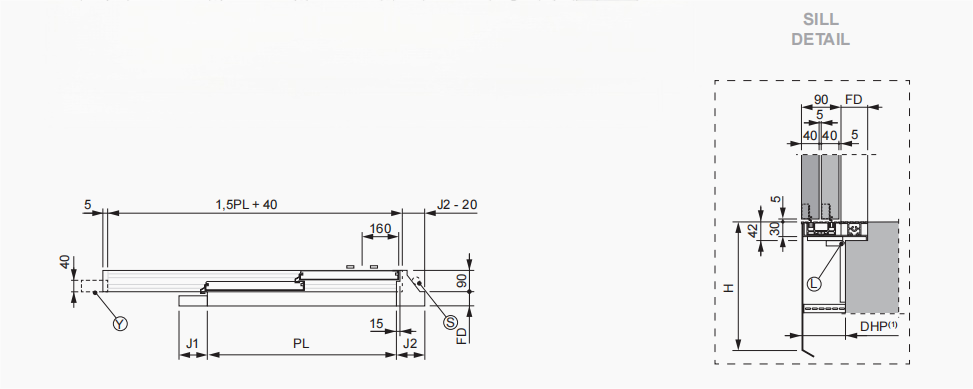

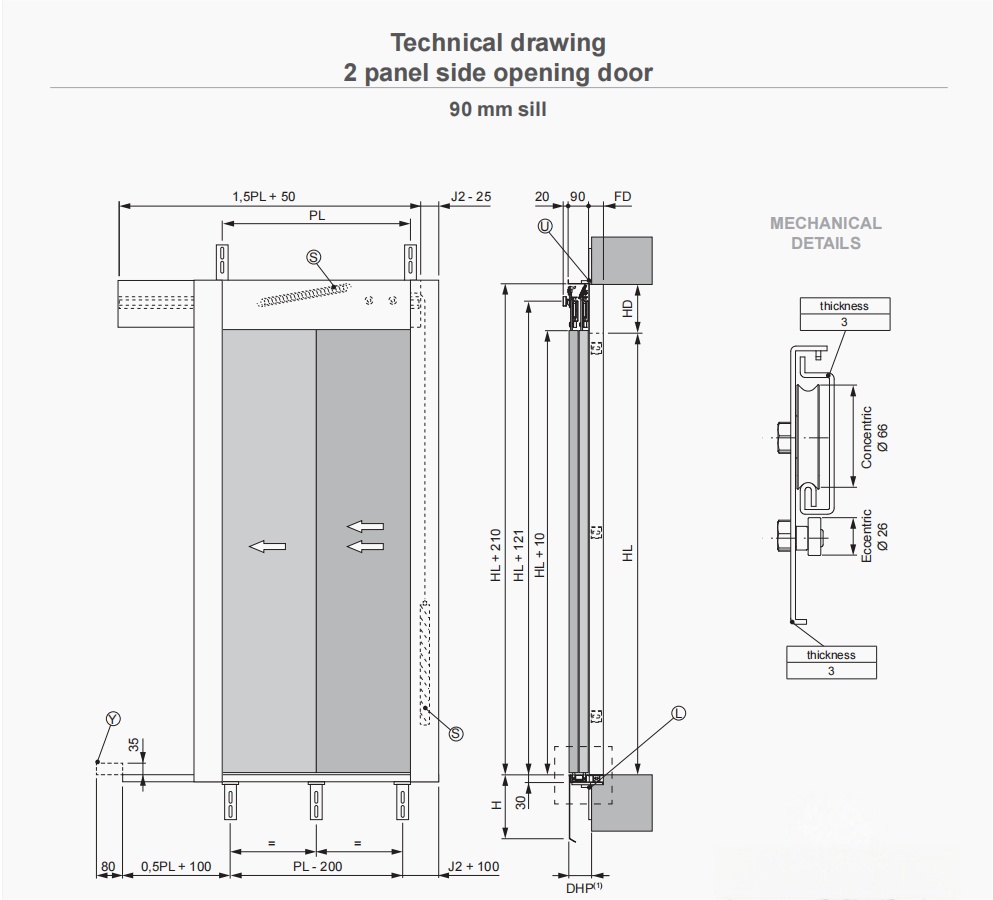

2 panel side opening landing door 90 mm sill

DHP
	Upper bracket
	Lower bracket

Safety closing system
	Counterweight	Spring

Notes:

1  See DHP details in technical features page.

Y With optional steel concealed sill, this extra space is required.

-   If not otherwise indicated all dimensions in mm.
