320kg-1000kg WJC-E SERIES MACHINES

Short Description:

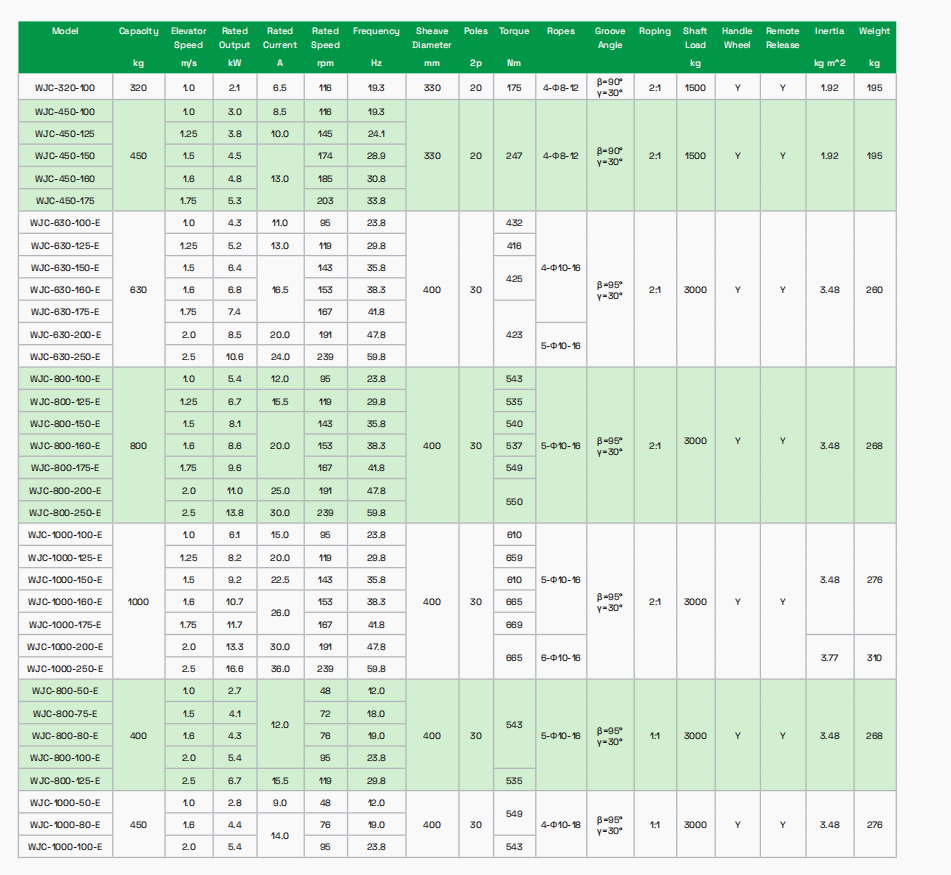

Capacity 320kg-1000kg
Wrap Single wrap
Rotor External rotor
Undercut U
Foot Pad Flatness <0.5mm
Protection Rating IP40
Insulation Class F
Poles 20 | 30
Duty Cycle S5-40%
Motor Rated Voltage AC380V
Brake Block
Picking/Holding Voltage DC110V
Full-wave rectification power source for brake

Product Detail

Product Tags

Features

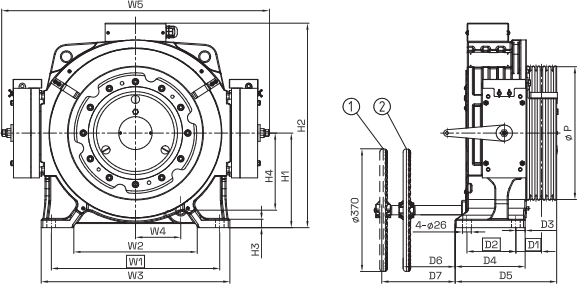

① Original Position
② Operation Position

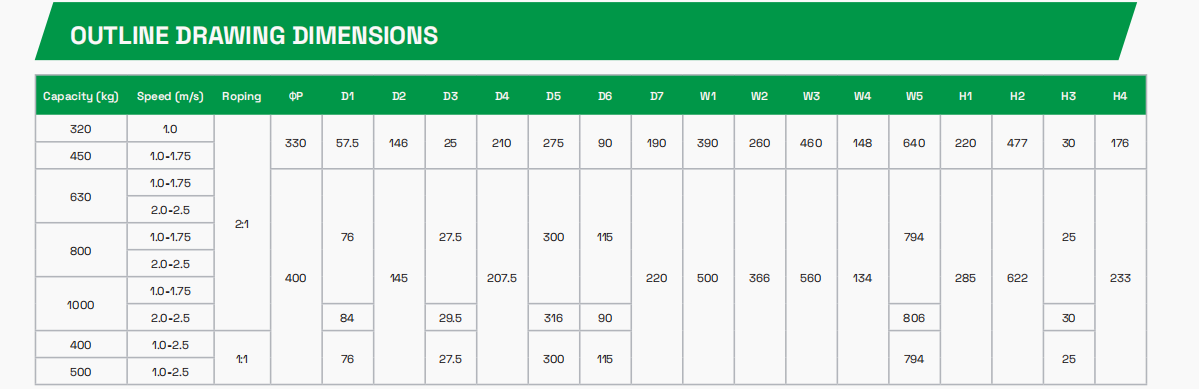

OUTLINE DRAWING DIMENSIONS

1 2

Notes:

1. The brake picking/holding voltage is DC110V. Voltage switch is not necessary.

2. The balance ratio is 0.45~0.5.

3. Regen drive application, please consult with us, then order with notes.
