450kg-1000kg WR-D (320mm SHEAVE) SERIES MACHINES Featured Image
  • 450kg-1000kg WR-D (320mm SHEAVE) SERIES MACHINES

450kg-1000kg WR-D (320mm SHEAVE) SERIES MACHINES

Short Description:

Capacity 450kg-1000kg
Wrap Single wrap
Rotor Internal rotor
Undercut U
Foot Pad Flatness <0.5mm
Protection Rating IP41
Insulation Class F
Poles 20
Duty Cycle S5-40%
Motor Rated Voltage AC380V
Brake Plate
Picking/Holding Voltage DC110V

Full-wave rectification power source for brake




Product Detail

Product Tags

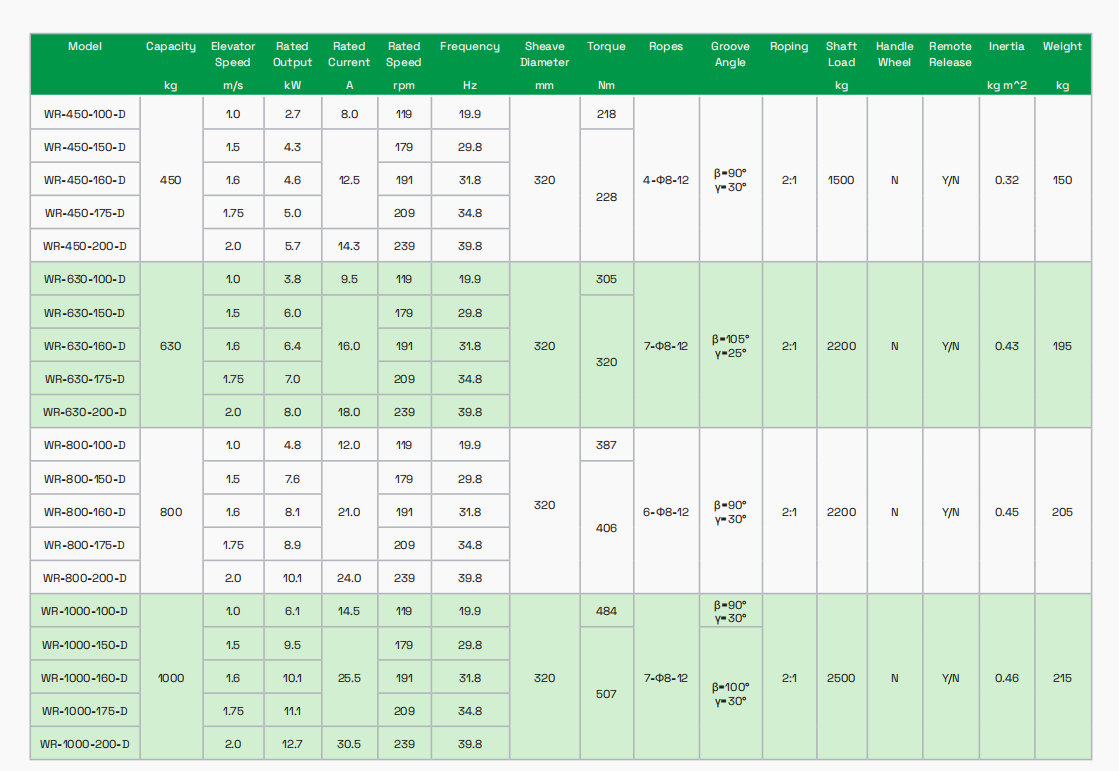

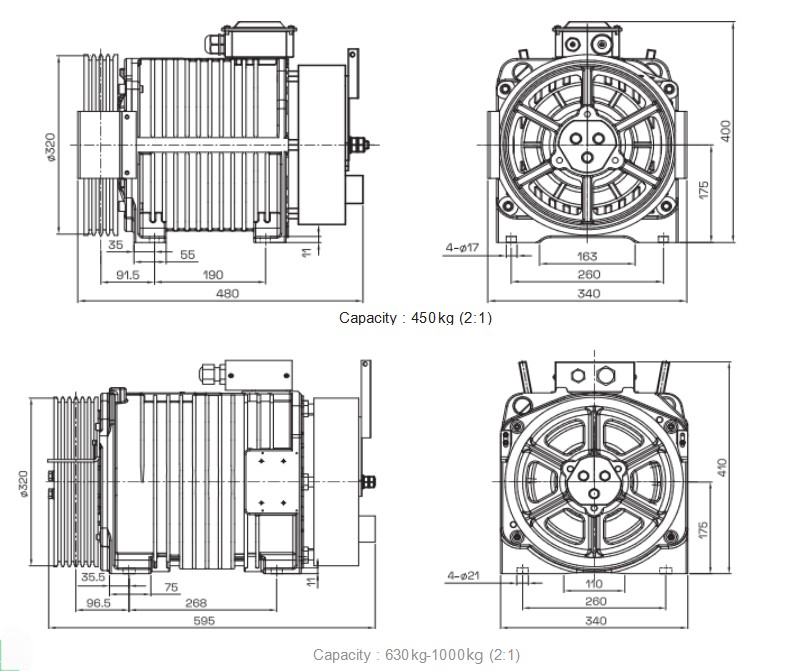

42.2 42.3

Notes:

1. The brake picking/holding voltage is DC110V. Voltage switch is not necessary.

2. The balance ratio is 0.45~0.5.

3.  Regen drive application, please consult with us, then order with notes.
