800kg-2000kg WJC-E (520mm SHEAVE) SERIES MACHINES Featured Image
  • 800kg-2000kg WJC-E (520mm SHEAVE) SERIES MACHINES

800kg-2000kg WJC-E (520mm SHEAVE) SERIES MACHINES

Short Description:

Capacity 800kg-2000kg
Wrap Single wrap
Rotor External rotor
Undercut U
Foot Pad Flatness <0.5mm
Protection Rating IP40
Insulation Class F
Poles 30
Duty Cycle S5-40%
Motor Rated Voltage AC380V
Brake Block
Picking/Holding Voltage DC110V

Full-wave rectification power source for brake

Product Detail

Product Tags

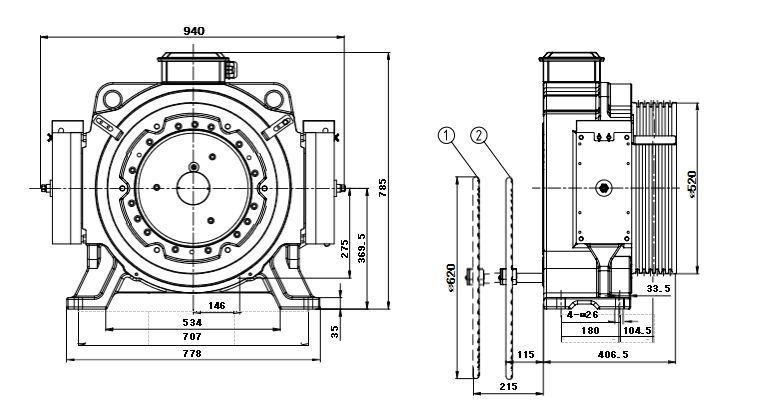

12.2

① Original Position

② Operation Position

12.3

Notes:

1. The brake picking/holding voltage is DC110V. Voltage switch is not necessary.

2. The balance ratio is 0.45~0.5.

3. Regen drive application, please consult with us, then order with notes.
