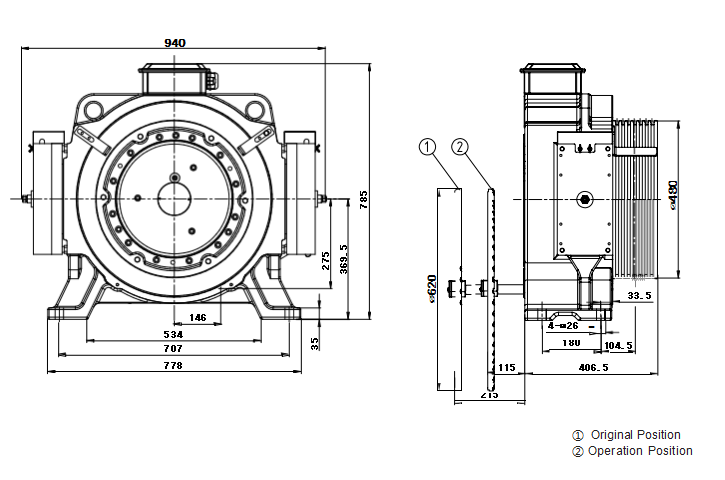

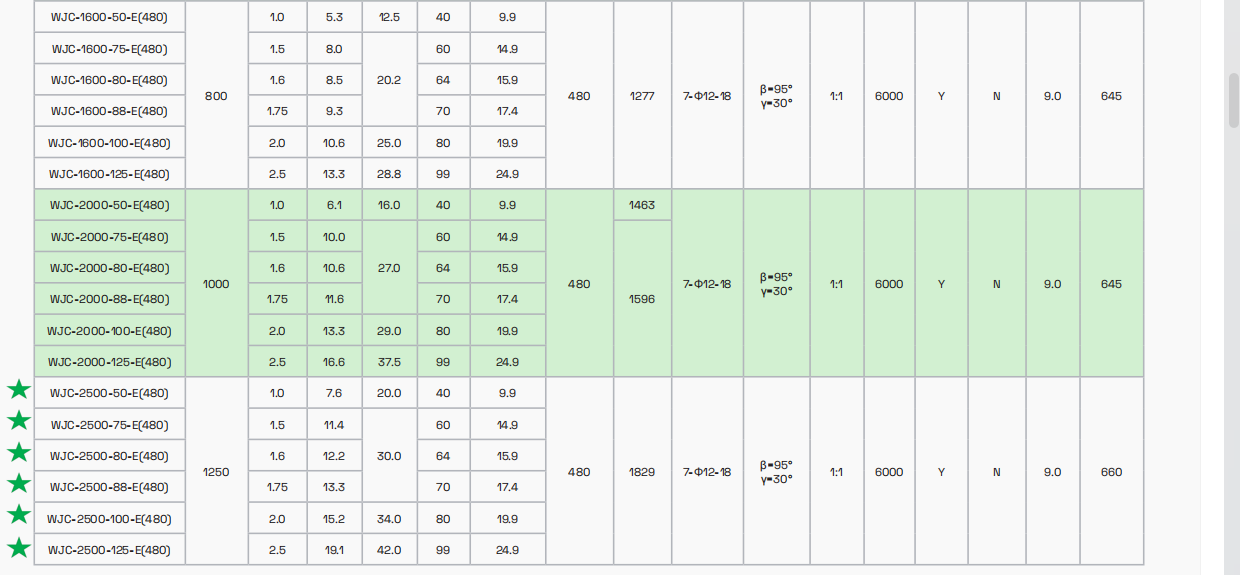

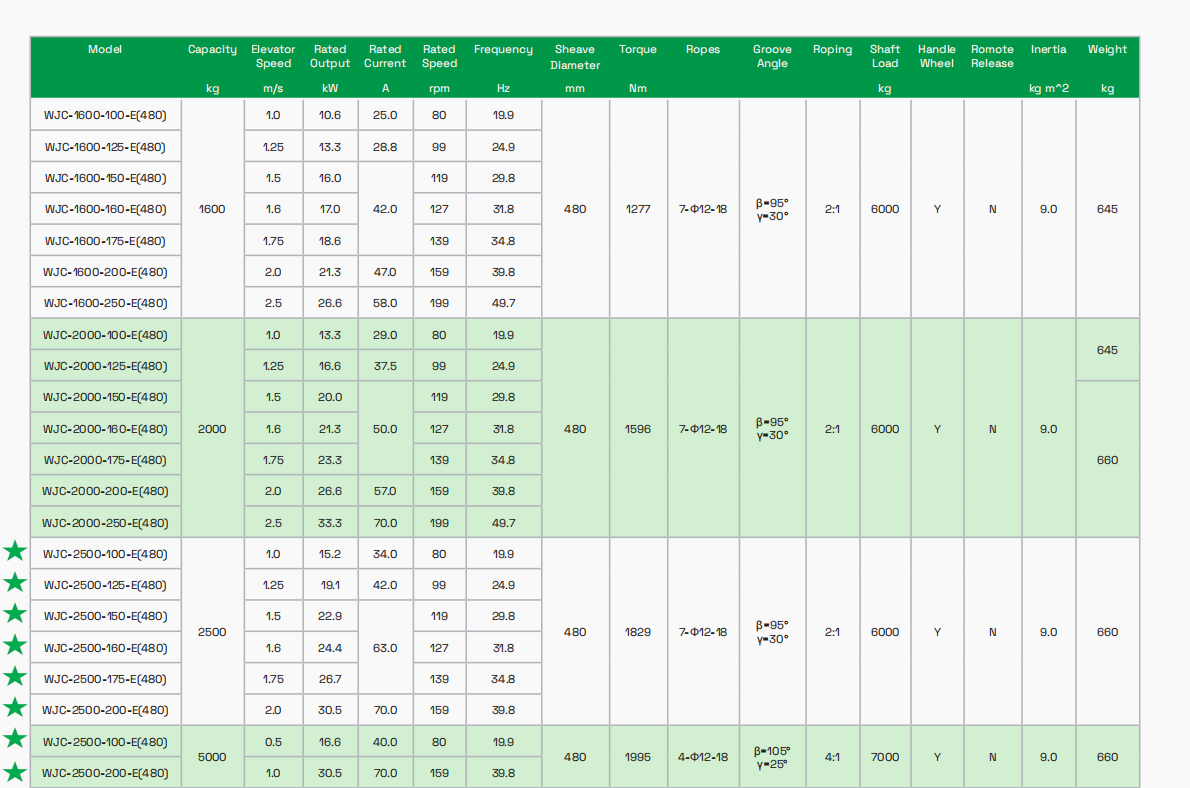

800kg-5000kg WJC-E (480mm SHEAVE) SERIES MACHINES

Notes：

1. The brake picking/holding voltage is DC110V. Voltage switch is not necessary.

2. The balance ratio is 0.45~0.5.

3. With “★ ” mark, the duty cycle is  S5-30%.

4.  Regen drive application, please consult with us, then order with notes.

5.  For alternative markets, we can supply this series machine with Φ10mm ropes, groove distance is 16mm and the max quantity is 8.
