ASCEND Elevator RD & AD & PD SERIES Villa Elevator Door System

ASCEND Elevator RD & AD & PD SERIES Villa Elevator Door System

Elevator doors constitute a vital component of any villa elevator; their design and specific type directly influence the user experience, spatial efficiency, and overall aesthetic appeal of the lift.

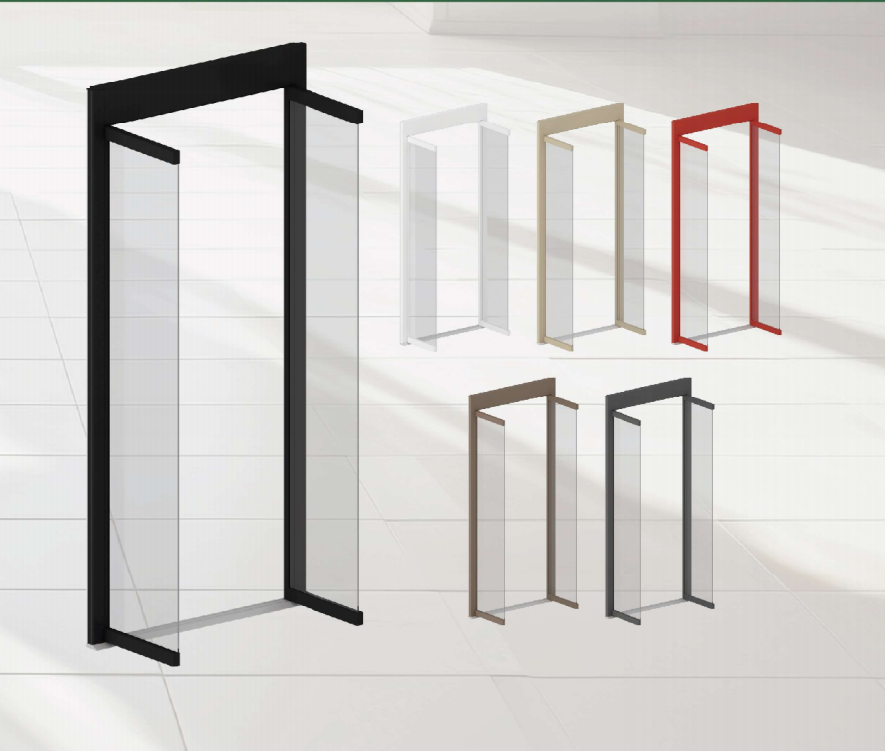

1. RD Automatic Double Door

•  Automatic Double Door: This is a widely adopted opening mechanism featuring a symmetrical design where two door panels part horizontally from the center. Typically, a single panel measures 700mm in width, resulting in a total clear opening width of up to 1400mm. This style is suitable for homes with a hoistway width of 1600mm or greater; it is characterized by mature technology, smooth operation, and high aesthetic value, with its symmetrical design harmonizing perfectly with modern minimalist architectural styles.

Product features

l The installation height space only requires LH+198mm

l Quickly respond to door opcning and closing commands to reducc clcvator waiting time

l Equipped with anti-pinch and emergency opening functions to ensure passenger safety

l Diverse colors integrated with various architectural aesthetics

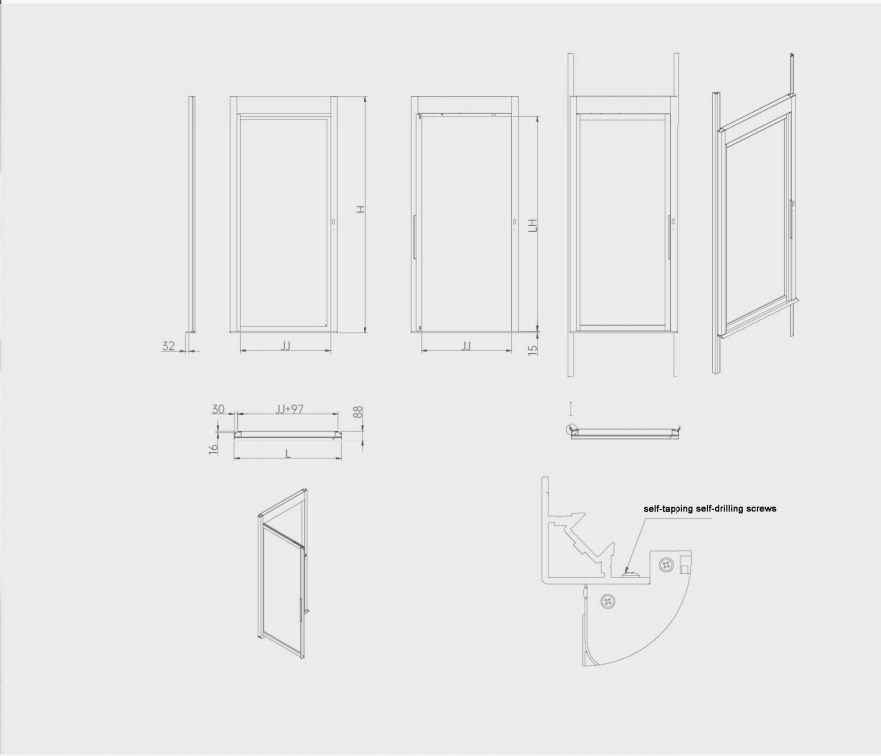

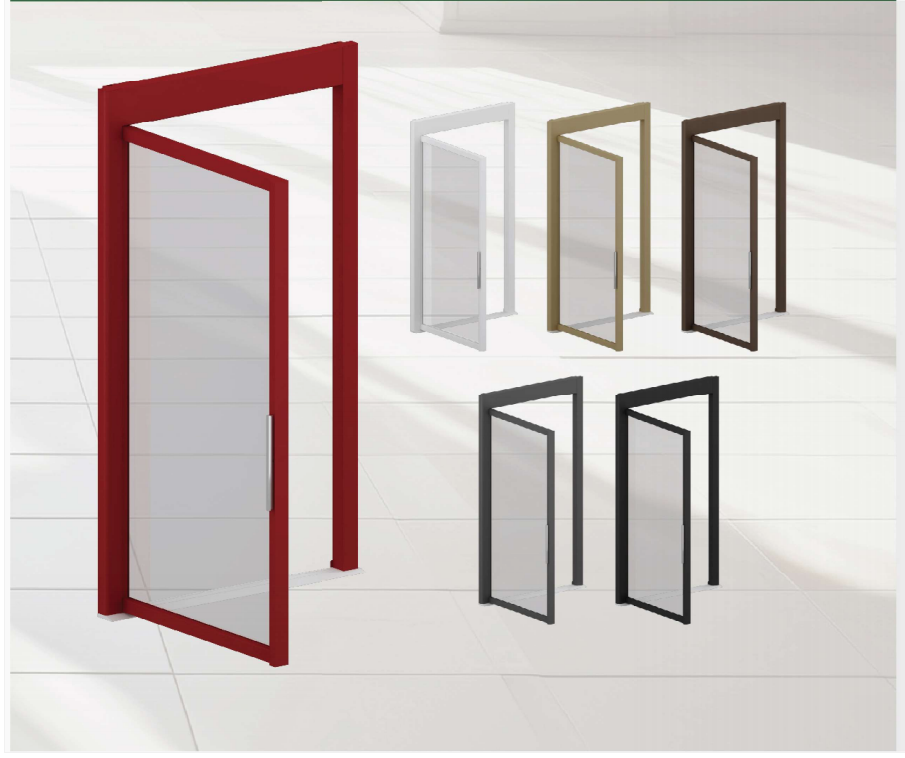

2. AD Automatic Swing Door

• Automatic Swing Doors: Breaking away from traditional designs, this mechanism features a 90-degree outward-opening action and is commonly found in screw-driven elevators and panoramic (glass) elevators. Since the door swings entirely outward, it does not encroach upon the interior space of the elevator car, making it ideal for compact cabins. Furthermore, it is frequently paired with glass door panels to create the visual effect of a “transparent moving box”; however, this design necessitates the allocation of sufficient clearance space within the external corridor or landing area.

Product features

l Heaven and earth axis design,simple structure,safer and more stable

l Compatible with automatic and manual door opening

l Diverse colors integrated with various architectural aesthetics

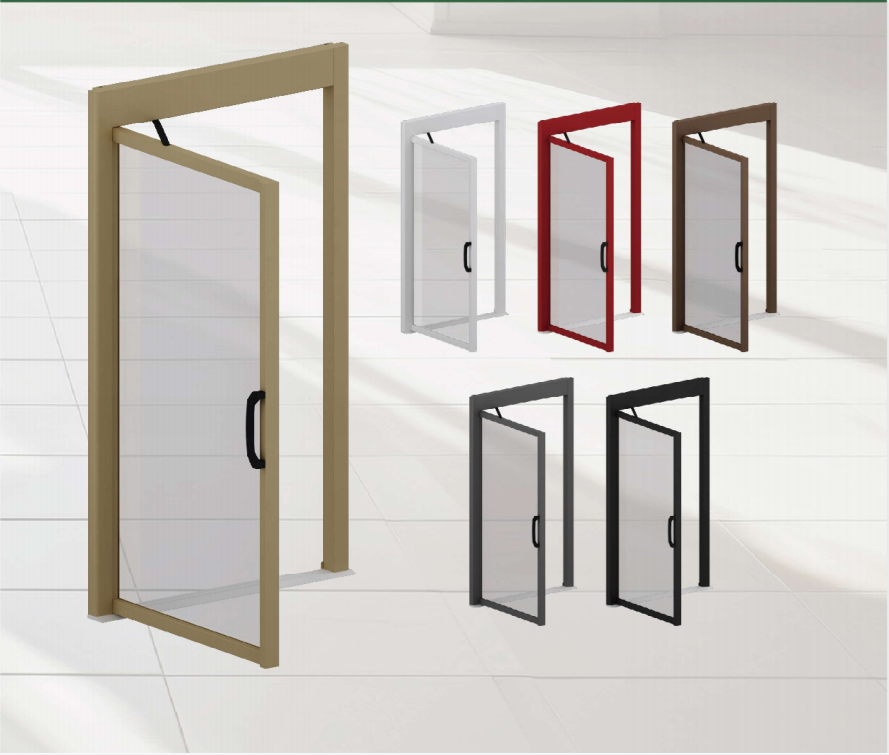

3. PD Manual Swing Door

• Manual Swing Doors: These doors are opened and closed manually via a simple push-and-pull action. By eliminating the need for an electric motor and complex control system, the cost is reduced by 40% to 60% compared to automatic doors. Requiring a minimum hoistway width of just 900mm, this option is particularly well-suited for attic elevators or compact residential lifts. For enhanced safety, it employs a dual-protection system comprising both electromagnetic and mechanical interlocks, ensuring the door remains locked—thereby preventing the risk of falls—unless the elevator car is precisely leveled with the corresponding floor.

Product features

l Small shaft,large door,suitable for shaft width less than 1200mm

l Leveling mechanical unlocking never fails

l Easy to install and suitable for all types of buildings

l Diverse colors integrated with various architectural aesthetics
